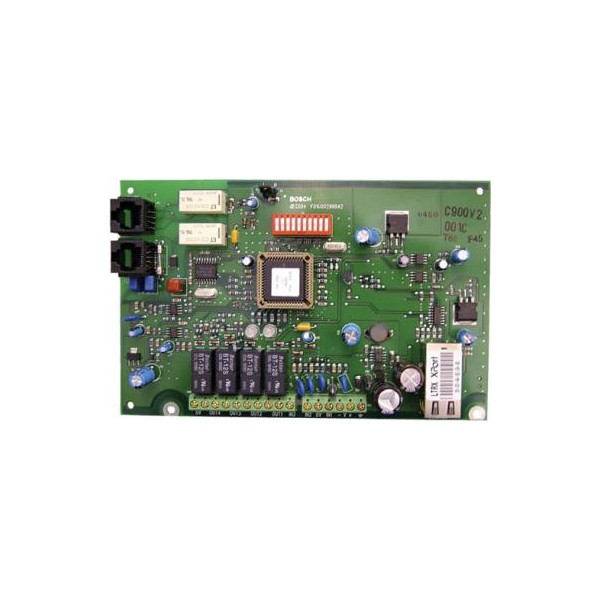

C900V2 Bosch Dialer Capture Ethernet Module

$99.99 $69.99

Manufacturer: Bosch

Stock Level: 4

Product Information

C900V2 Simulates a phone line and sends alarm signals to the central station receiver via IP.

  • Captures alarm and event data from dialer-based control panels using CONTACT ID, SIA, Modem II, Modem IIe, Modem IIIa2, Pulse, and other formats
  • Performs full data transmissions without changing the data
  • 12 VDC to 24 VDC voltage range
  • Re-routes signals using UDP/IP-based data networks
  • Convenient connection (RJ-45 Jack) to Ethernet networks
  • Integrated 10/100 Network Interface Module, or NIM
  • Provides acknowledgement from the receiver to the control panel
  • Supports 128-bit AES Rijndael encryption



Control Panel:RJ-45 Modular Jack
Telco:RJ-45 Modular Jack
LAN/WAN:RJ-45 Modular Jack
Ethernet Cable:Unshielded twisted pair 100 m (328 ft) For 10BASE-T, use Category 3 or better. For 100BASE-T, use Category 5 or better.

Temperature (Operating):0°C to +49°C (+32°F to +120°F)

Module Status LEDs:2 dual-colored

Dimensions:17.8 cm x 11.4 cm (7 in. x 4.5 in.)
Interface:IEEE 802.3

Current (Maximum):280 mA
Voltage Range:12 VDC to 24 VDC nominal



Product Code: C900V2
