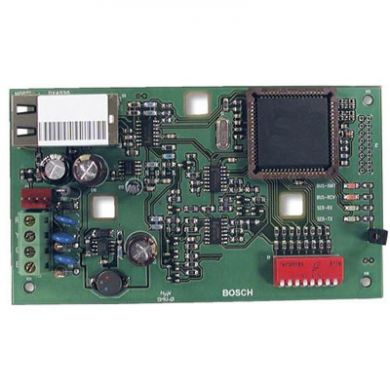

The DX4020 Network Interface Module creates two-way
communications over Ethernet networks for compatible
control panels. Typical uses include:
• Reporting to the D6600 Communications Receiver/
Gateway
• Remote administration with Remote Programming
Software (RPS) or RPS-Lite
• Connecting to a PC for programming with PC9000
Software or Building Integration System (BIS)
DIP Switches
Use the DIP switches to easily assign a bus address to
the DX4020 Network Interface Module.
Programmable IP Address
Use ARP and Telnet commands from any PC to program
the DX4020 Network Interface Module’s IP address. The
IP address can be dynamic using DHCP or the IP address
can be static.
SDI Bus Control Panels (version 6.0 or higher)
• D9412GV2, D7412GV2, and D7212GV2
• D9412G, D7412G, and D7212G
• D9412, D7412, and D7212
• D9112
Option Bus Control Panels
• DS7400Xi (version 4.10 or higher)
• CC7420-A
• DS7220 and DS7240 (version 2.10 or higher)
New with one year warranty.
Product Code: DX4020
