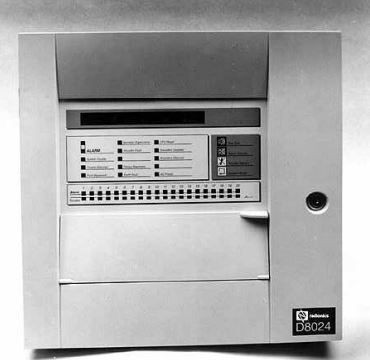

Description The Radionics D8024 is an expandable analog Fire Alarm Control Panel (FACP) that provides point identification through addressable analog devices. Each D8024 has two expansion slots to accommodate plug-in polling circuit modules. Each module supports 126 analog addresses, giving the panel a potential of 252 addressable points. Flexibility in system design allows the option of grouping device points together and identifying them as one location or zone in order to simplify system operation. The front panel display has LED status displays showing power, trouble, supervisory, alarm and reset conditions in addition to an 80-character alphanumeric LCD annunciator that provides programmed device point information. Active devices are identified through custom text and LEDs at the Front Panel Display and at the annunciators. The Fire System Controller built into the front panel display provides total system control. Its keypads allow event viewing, device control and installation and end user programming. It has four System Control keys to silence alarms, silence trouble sounders, initiate a drill and reset the system. The D8024 has two on-board notification appliance circuits that can be expanded with an addressable NAC module. These circuits are programmable with specific alarms (patterns) and timed output. The panel polls devices regularly for levels of contamination. Device levels that exceed the service threshold result in a service message rather than an alarm. The system supports “drift compensation” for slightly dirty devices. The “day/night” sensitivity program allows an increased sensitivity level during periods of reduced occupancy, resulting in increased security and reduced likelihood of alarm errors. The system can be programmed at the site using the on-board programming software. The panel stores all events in its memory logger (up to 500 events), recording the time, date, event and point ID for each event. Events include alarms, restorals, trouble and system status events. The events stored in memory can be retrieved and displayed at the panel.
New in original box with installation manual and one year warranty.
Misc hardware package (with EOLs & misc screws, etc)
Product Code: D8024
